2-6T Double Telescopic Adjustable Spreader Beam End Lifting Lugs -expands to 2000mm

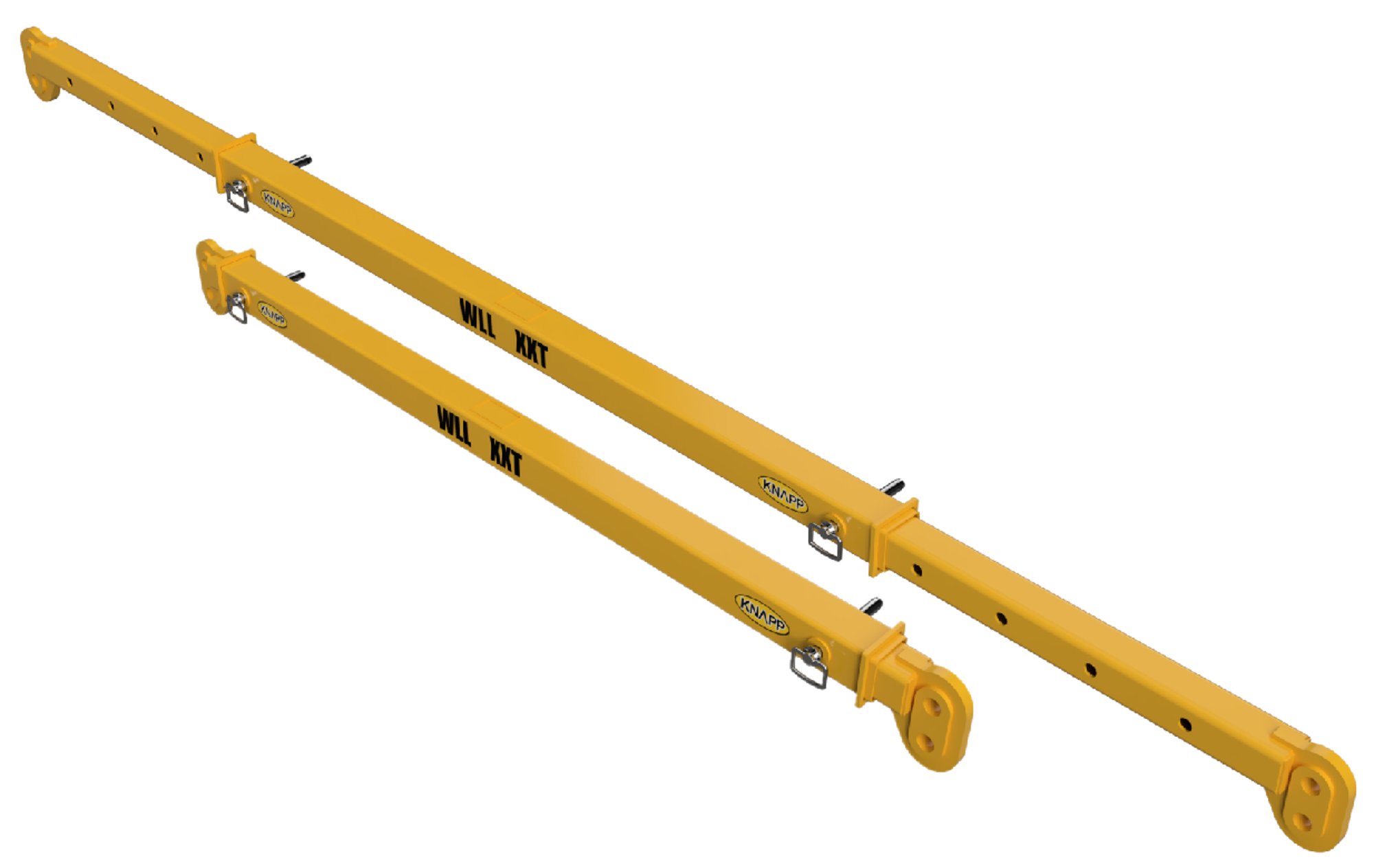

This double telescopic adjustable spreader beam expands from 1400mm to 2000mm. It is rated to lift 6T WLL (Weight Load Limit) when the spreader beam is contracted to 1400mm and can lift 2T WLL when the spreader beam is fully extended to 2000mm.
| Product Code (SKU) | SB312-2000-2T-R1 |
| PRICE (excl GST) | $2,280.00 + GST |
| WLL (Weight Load Limit) | 2-6T |
| "X" length when contracted | 1400 mm |
| "Z" length when extended | 2000 mm |
| No. expansion holes each inernal beam | 2 |
| "V" distance between expansion holes | 150 mm |
| "Y" height required above beam | 1.73 metres |
| Bow shackle size for lifting lug | 6.5T |
| Pins | S408 |
| Colour | Safety Yellow |
| Tare weight | 28 kgs |
| Lead Time | 1 in Stock |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
WLL (Weight Load Limit) Matrix
| SPAN (Maximum) | WLL |
| 2000 mm | 2T |
| 1700 mm | 4T |
| 1400 mm | 6T |
Bracket Dimensions
| "A" Distance from outside of lifting lug to outside of lifting lug | 1493 mm |
| "B" Distance from inside of collar to inside of collar (allow extra 10mm inside each collar for weld) | 1133 mm |
| "C" Distance from outside of Pin Pad Eye to outside of Pin Pad Eye (allow extra 10mm oursite each Pin Pad Eye for weld) | 980 mm |
| "D" Distance between Pin Centres | 933 mm |
| "E" Height of lifting lug | 156 mm |
| "F" Distance from outide of collar to outside of collar | 91 mm |
| "G" Height and width of central section - largest section | 65 mm |
| Distance pin extends beyond the outside of central section | 25 mm |
