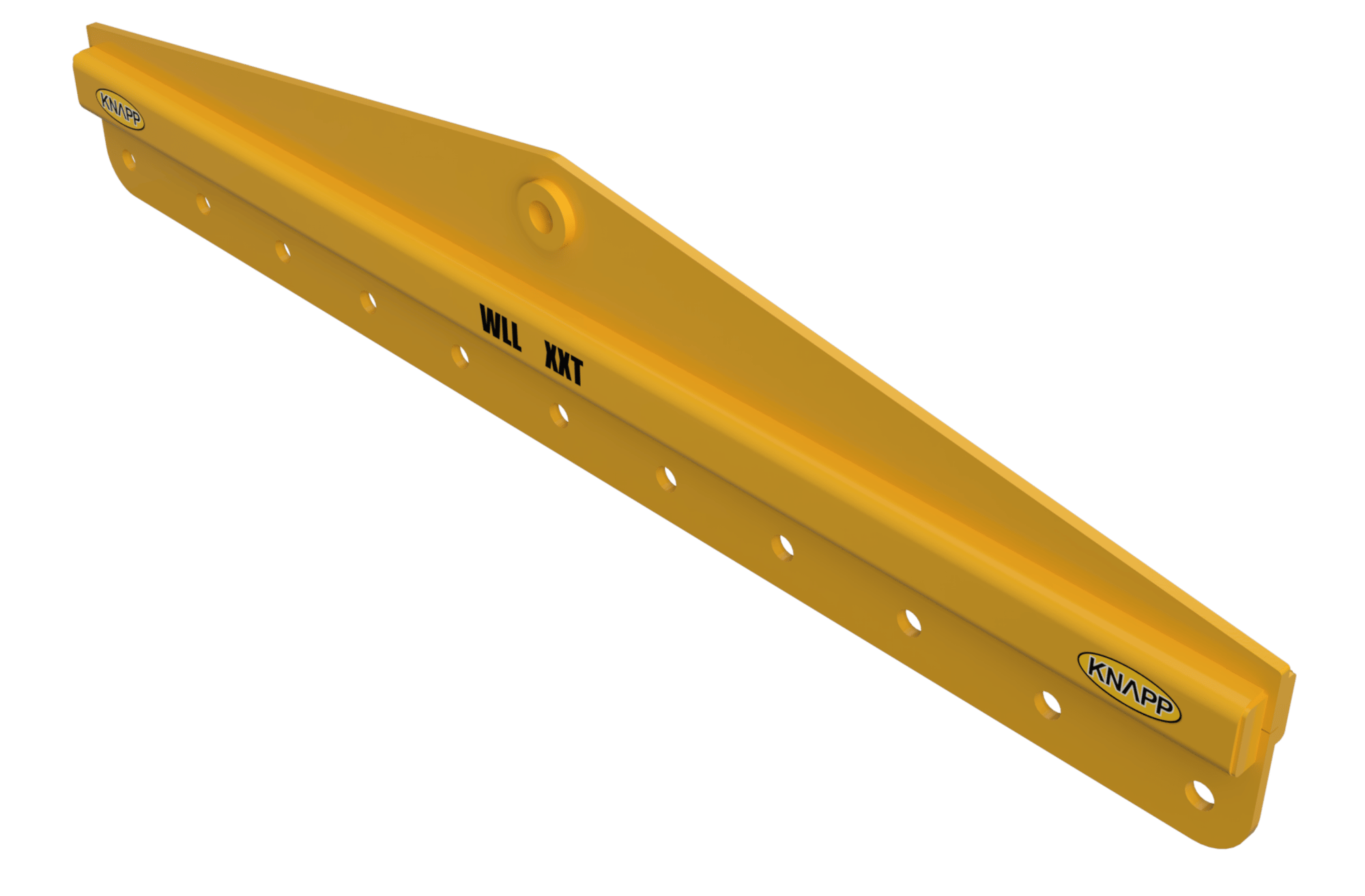

1T Multi Lifting Hole Lifting Beam with Central Lifting Point and Fixed Point Plate - Length 2000mm
This multi lifting hole lifting beam is rated to lift 1T WLL (Weight Load Limit) with lifting holes spaced up to 2000mm apart under the lifting beam and a central hole to lift the beam on top of the beam. Ideal where there is limited space above the beam for lifting. Sets of lifting holes designed to lift loads at 2000mm, 1600mm, 1200mm, 800mm, 400mm and a single lifting hole in the middle.
| Product Code (SKU) | SB1CFP-2000-1T-R1 |
| RETAIL PRICE (excl GST) | $2,595.00 + GST |
| WLL (Weight Load Limit) | 1T |

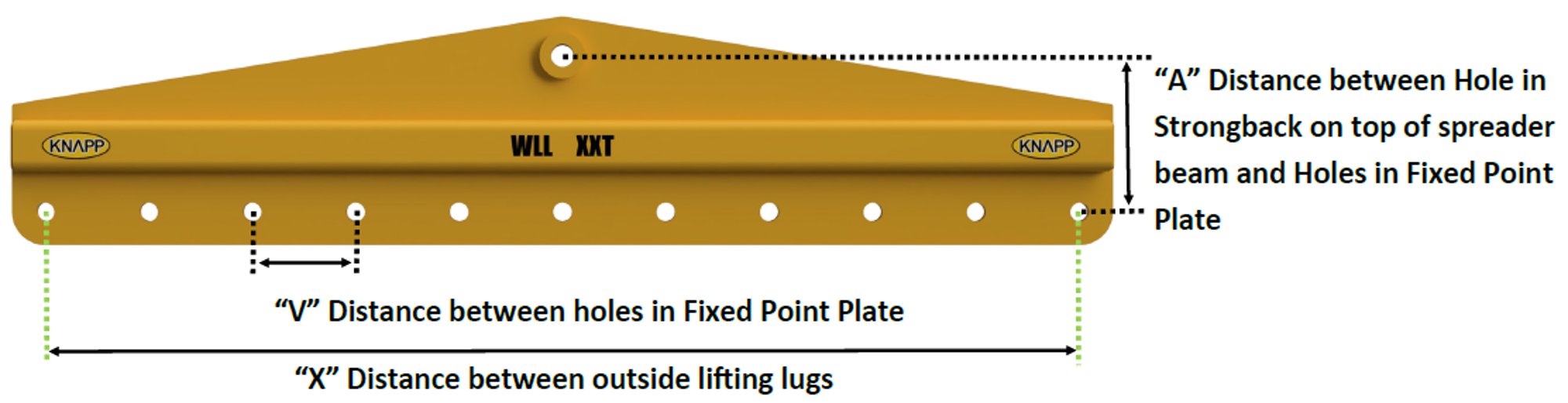

| “X” Distance between outside Lifting Holes | 2000 mm |
| “A” Distance between Top Lifting Hole and Holes in Fixed Point Plate under beam | 252 mm |
| "V" Distance between Lifting Holes in Fixed Point Plate | 200 mm |
| No. of Lifting Holes in Fixed Point Plate | 11 |
| Bow shackle size for Top Lifting Hole | 9.5T |
| Bow shackle size for Lifting Holes under beam | 2T |
| Colour | Safety Yellow |
| Tare weight | 58 kgs |
| Lead Time | 3 weeks |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
