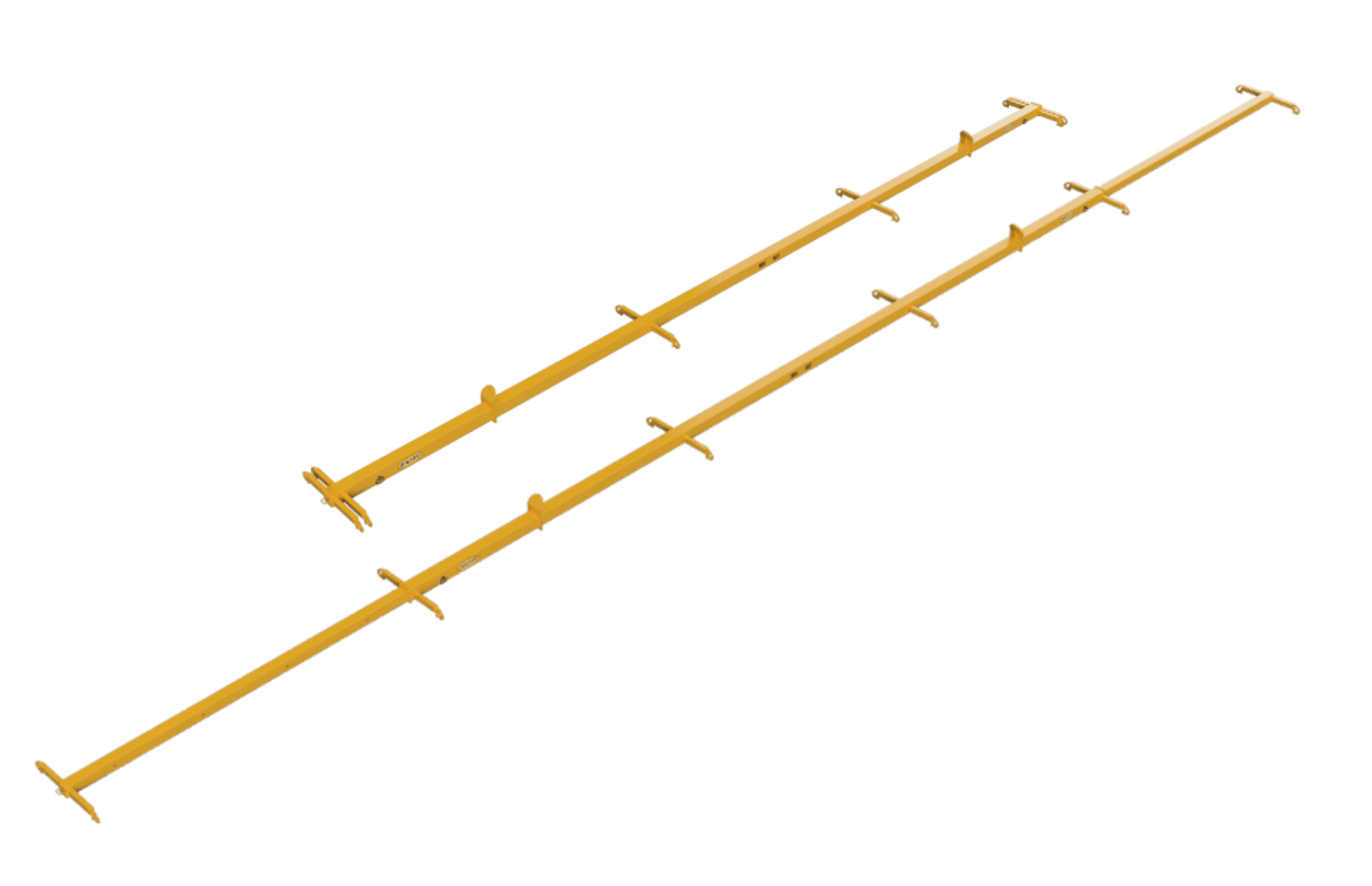

1.5T Double Telescopic Roofing Spreader Beam Cross Members with Stops -expands to 20000mm
This double telescopic roofing spreader beam expands from 12000mm to 20000mm. It is rated to lift 1.5T WLL (Weight Load Limit) when the spreader beam is contracted to 15000mm and can lift 1.5T WLL when the spreader beam is fully extended to 20000mm and roofing material up to 24000mm long. Stops on Cross Members.
| Product Code (SKU) | SBRF312-20000-1.5T-R2 |
| PRICE (excl GST) | $14,750.00 + GST |
| WLL (Weight Load Limit) | 1.5T |
| "A" Contracted Length | 12000 mm |
| "B" Expanded Length | 20000 mm |
| End on Cross Members | Stops |
| Tare Weight | 941 kgs |
| Total No. of Cross Members each side | 6 |
| "D" Distance (width) btw ends of Cross Members | 860 mm |
| "X" Distance btw Cross Members on Central Beam | 3873 mm |
| "W" Distance btw Telescope Cross Members & outside Cross Members on Central Beam when contracted | 115 mm |
| "Y" Distance btw Telescope Cross Members & outside Cross Members on Central Beam when expanded | 4115 mm |
| No. Extension Holes in each Telescopic Beam | 4 |
| Distance btw Extension Holes | 1000 mm |
| Lifting Lug Bow Shackle | 4.7T |
| "C" Distance btw Lifting Lugs on Central Beam | 8310 mm |
| "Z" Height above Spread Beam | 7200 mm |
| Lead Time | 3-4 weeks |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
