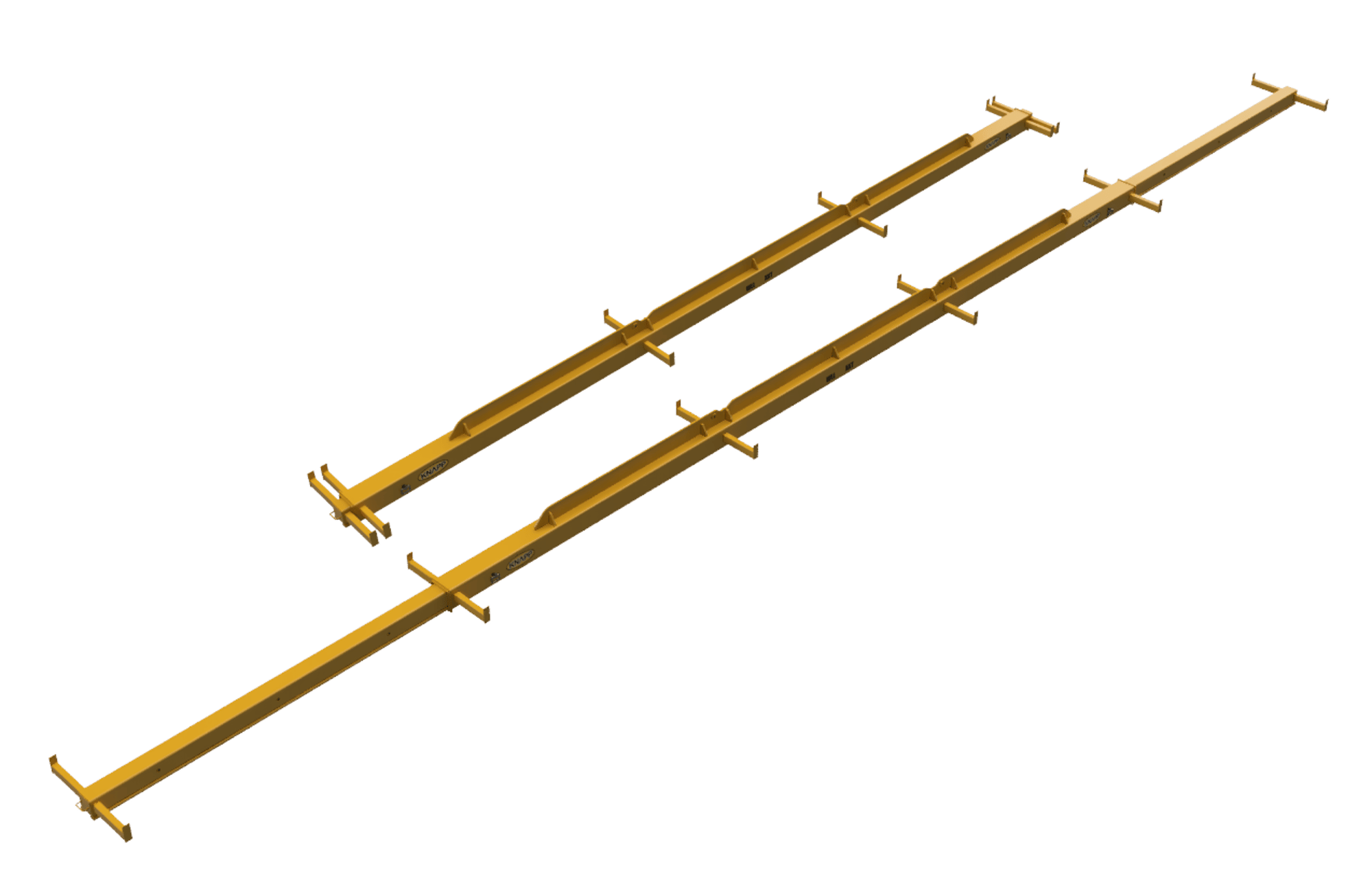

3-5T Double Telescopic Roofing Spreader Beam Cross Members with Stops -expands to 15000mm
This double telescopic roofing spreader beam expands from 9000mm to 15000mm. It is rated to lift 5T WLL (Weight Load Limit) when the spreader beam is contracted to 9000mm and can lift 3T WLL when the spreader beam is fully extended to 15000mm and roofing material up to 24000mm long. Stops on Cross Members.
| Product Code (SKU) | SBRF2C312-15000-4T-R2 |
| PRICE (excl GST) | $15,675.00 + GST |
| WLL (Weight Load Limit) | 3-5T |

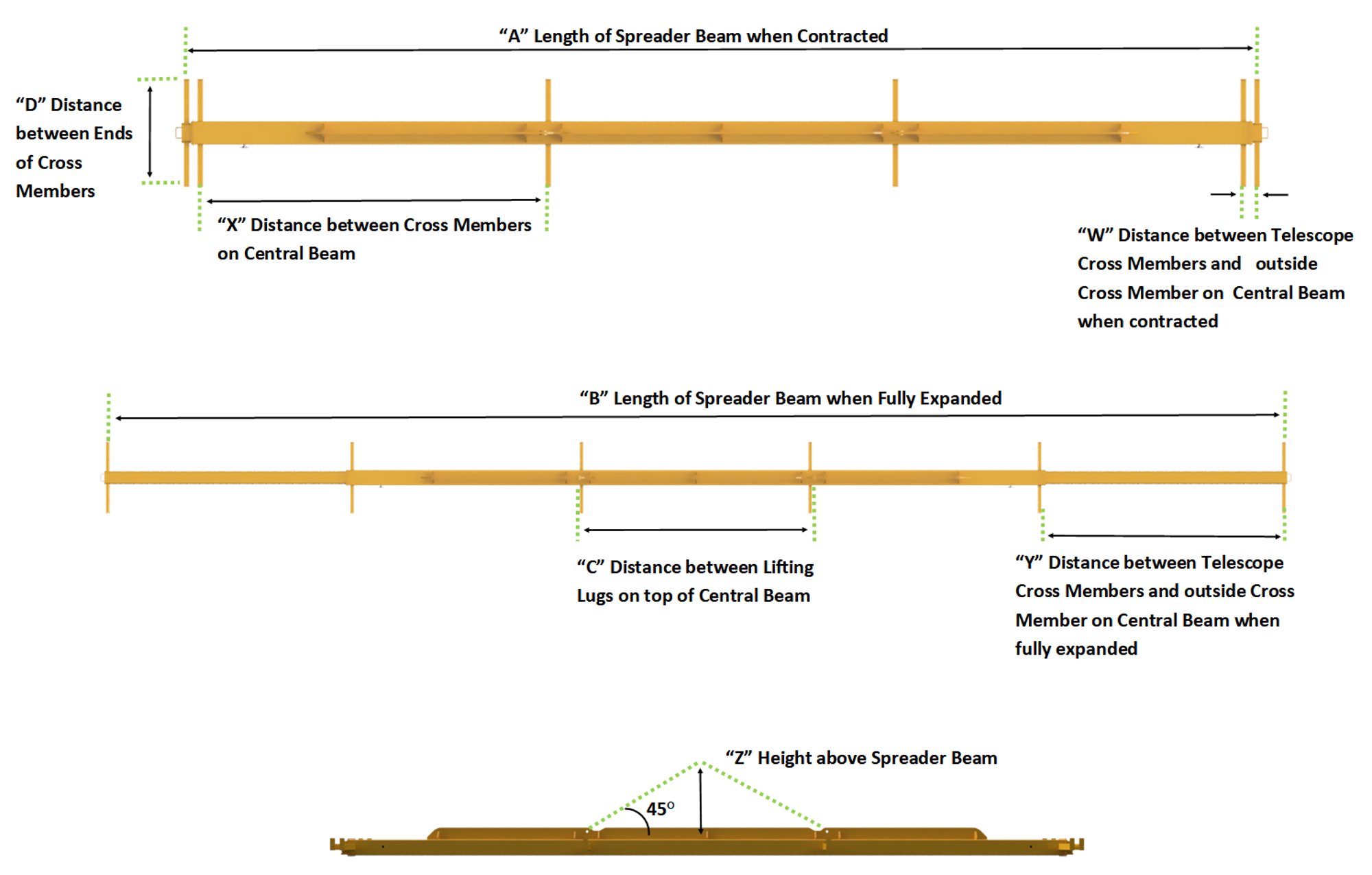

| "A" Contracted Length | 9000 mm |
| "B" Expanded Length | 15000 mm |
| End on Cross Members | Stops |
| Tare Weight | 1078 kgs |
| Total No. of Cross Members each side | 6 |
| "D" Distance (width) btw ends of Cross Members | 900 mm |
| "X" Distance btw Cross Members on Central Beam | 3715 mm |
| "W" Distance btw Telescope Cross Members & outside Cross Members on Central Beam when contracted | 115 mm |
| "Y" Distance btw Telescope Cross Members & outside Cross Members on Central Beam when expanded | 3115 mm |
| No. Extension Holes in each Telescopic Beam | 3 |
| Distance btw Extension Holes | 1000 mm |
| Lifting Lug Bow Shackle | 8.5T |
| "C" Distance btw Lifting Lugs on Central Beam | 3000 mm |
| "Z" Height above Spread Beam | 1500 mm |
| Lead Time | 4 weeks |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
WLL (Weight Load Limit) Matrix
| SPAN (Maximum) | WLL |
| Material Length 24000mm | 3T |
| Material Length 20000mm | 4T |
| Material Length 15000mm | 5T |
