SKID STEER PALLET FORKS & BOBCAT PALLET FORKS
Bobcat Forks & Skid Steer Pallet Forks | Skid Steer Fork Attachments – Enhance Your Versatility
KNAPP skid steer attachments include pallet forks designed to expand the capabilities of your skid steer, making it a versatile tool for handling pallets and various materials with ease.
| Model | Description | Retail Price (excl GST) | Fork Load Rating (WLL) | Fork Length | Distance btw Hitch pin centres | Tare Weight (approx) | Lead Time | |
|---|---|---|---|---|---|---|---|---|
| Model:KBC002 | Description:Skid Steer Pallet Forks Standard 1800 kgs | Retail Price (excl GST):$1,300.00 + GST | Fork Load Rating (WLL):1800 kgs | Fork Length:1067 mm | Distance btw Hitch pin centres:850 mm | Tare Weight (approx):170 kgs | Lead Time:2 in stock | |
| Model:KBC003 | Description:Skid Steer Pallet Forks Long 1800 kgs | Retail Price (excl GST):$1,360.00 + GST | Fork Load Rating (WLL):1800 kgs | Fork Length:1219 mm | Distance btw Hitch pin centres:850 mm | Tare Weight (approx):179 kgs | Lead Time:2 in stock | |
| Model:KBC008 | Description:Skid Steer Pallet Forks Standard 2500 kgs | Retail Price (excl GST):$1,415.00 + GST | Fork Load Rating (WLL):2500 kgs | Fork Length:1067 mm | Distance btw Hitch pin centres:850 mm | Tare Weight (approx):179 kgs | Lead Time:2 in stock | |
| Model:KBC009 | Description:Skid Steer Pallet Forks Long 2500 kgs | Retail Price (excl GST):$1,445.00 + GST | Fork Load Rating (WLL):2500 kgs | Fork Length:1219 mm | Distance btw Hitch pin centres:850 mm | Tare Weight (approx):188 kgs | Lead Time:2 in stock | |
| Model:KBC018 | Description:Load Back Rest | Retail Price (excl GST):$500.00 + GST | Tare Weight (approx):11 kgs | Lead Time:3 days | ||||
Designed to suit skid steer hitches with the following dimensions:
Hitch Width that is 1130mm or less – Pin Centres of 850mm – Hitch height 395mm to 405mm
The top 45 degree bar can be supplied separately so you can weld it on to suit your hitch (this is the best way to guarantee a snug fit onto your hitch). Alternatively, you can complete the Skid Steer Measurement Instructions (see button below) and we can supply the Skid Steer Pallet Forks with the top 45 degree bar welded on to suit the height of your hitch.
Custom Skid Steer Pallet Forks can be designed and manufactured on request for hitches with different dimensions.
Features:
Universal Compatibility – KNAPP Skid Steer Pallet Forks are designed to fit a wide range of skid steers, including Bobcat and other leading brands.
Quality Materials: Manufactured from high quality 8mm Grade 350 steel with spacers welded under pin holes for added strength.
Certified Forks: Certified forks rated to lift loads of 1800 kgs or 2500 kgs, 1067mm or 1219mm long. Other certified fork options available on request.

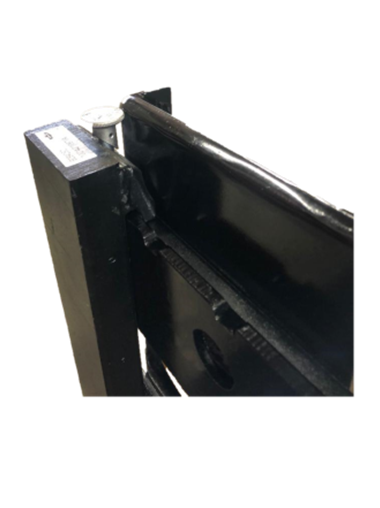

Notched Adjustment & Spring Pins: The notched adjustment on the top rail allows the forks to lock into different positions with spring pins, providing flexibility and stability for handling different types of loads.
Top 45 degree bar – Located to suit your hitch height or supplied separately for you to weld on.
NZ Made: Proudly manufactured in New Zealand. We are ISO9001:2015 certified and welder fabricators are ticketed.
Frequently Asked Questions
Will these forks fit my Bobcat / skid steer? KNAPP Skid Steer Pallet Forks are designed to fit a wide range of skid steers including Bobcat machines. To ensure compatibility, your hitch will need to fall within the following dimensions: Hitch Width of 1130mm or less, Pin Centres of 850mm, and Hitch Height between 395mm and 405mm. These specifications cover the majority of skid steers on the market. If your machine falls outside these measurements, don't worry, we offer a custom manufacturing service to design and build skid steer pallet forks to suit your specific hitch dimensions.
What if I'm not sure of my hitch dimensions? We understand that not everyone has their hitch specs on hand, which is why we've made the process as straightforward as possible. Simply complete our Skid Steer Measurement Instructions form (see the button on this page) and send it through to us. Our team will review your measurements and supply the Skid Steer Pallet Forks with the top 45 degree bar pre-welded to suit your exact hitch height. This takes the guesswork out of the fitting process and ensures you get a product that works seamlessly with your machine from day one.
Can I weld the top bar on myself? Yes, absolutely. The top 45 degree bar can be supplied separately if you'd prefer to weld it on yourself. In fact, this is often the best approach, as it allows you to position the bar to achieve the most precise and snug fit onto your specific hitch. If you have access to a competent welder or do your own fabrication work, this option gives you the greatest level of control over the final fit.
What weight can these forks lift? Our certified forks are rated to lift loads of either 1800 kgs or 2500 kgs depending on the model you choose. Fork lengths of 1067mm and 1219mm are available as standard options. If your application requires something different, additional certified fork options are available on request — just get in touch with our team to discuss your requirements.
What steel are the forks made from? KNAPP Skid Steer Pallet Forks are manufactured from high quality 8mm Grade 350 steel, chosen for its strength and durability in demanding work environments. Spacers are welded under the pin holes to provide additional reinforcement at the key stress points, ensuring the forks hold up to heavy and repeated use over the long term.
Are the forks certified? Yes. All forks supplied by KNAPP are certified to their rated lifting capacity either 1800 kgs or 2500 kgs.
Are these made in New Zealand? Yes, KNAPP Skid Steer Pallet Forks are proudly designed and manufactured right here in New Zealand. Buying local means faster lead times, easier communication, and the assurance that your attachment is built to perform in New Zealand conditions.
