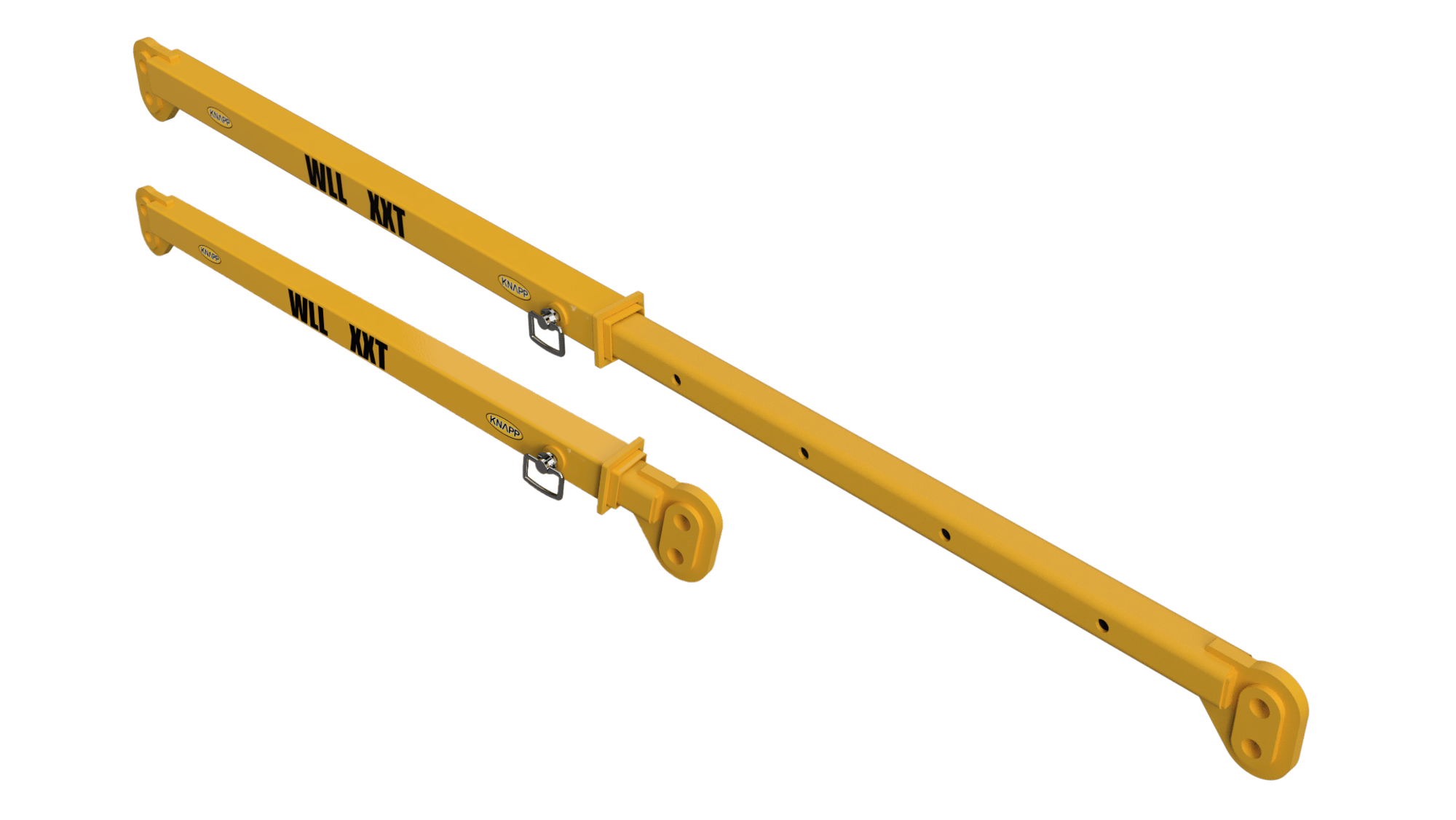

6T Single Telescopic Adjustable Spreader Beam End Lifting Lugs -expands to 1500mm

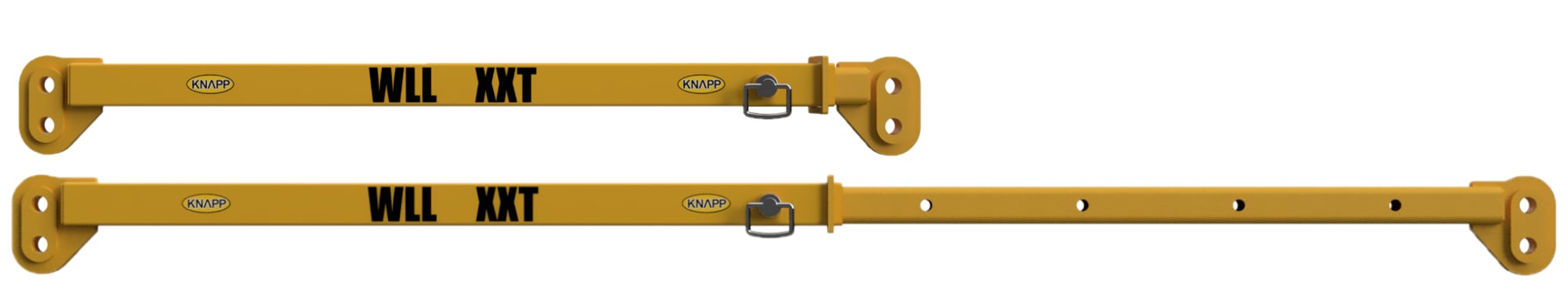

This single telescopic adjustable spreader beam expands from 1100mm to 1500mm. It is rated to lift 6T WLL (Weight Load Limit) when the spreader beam is contracted to 1100mm and can lift 6T WLL when the spreader beam is fully extended to 1500mm.
| Product Code (SKU) | SB212-1500-6T-R2 |
| PRICE (excl GST) | $2,355.00 + GST |
| WLL (Weight Load Limit) | 6T |

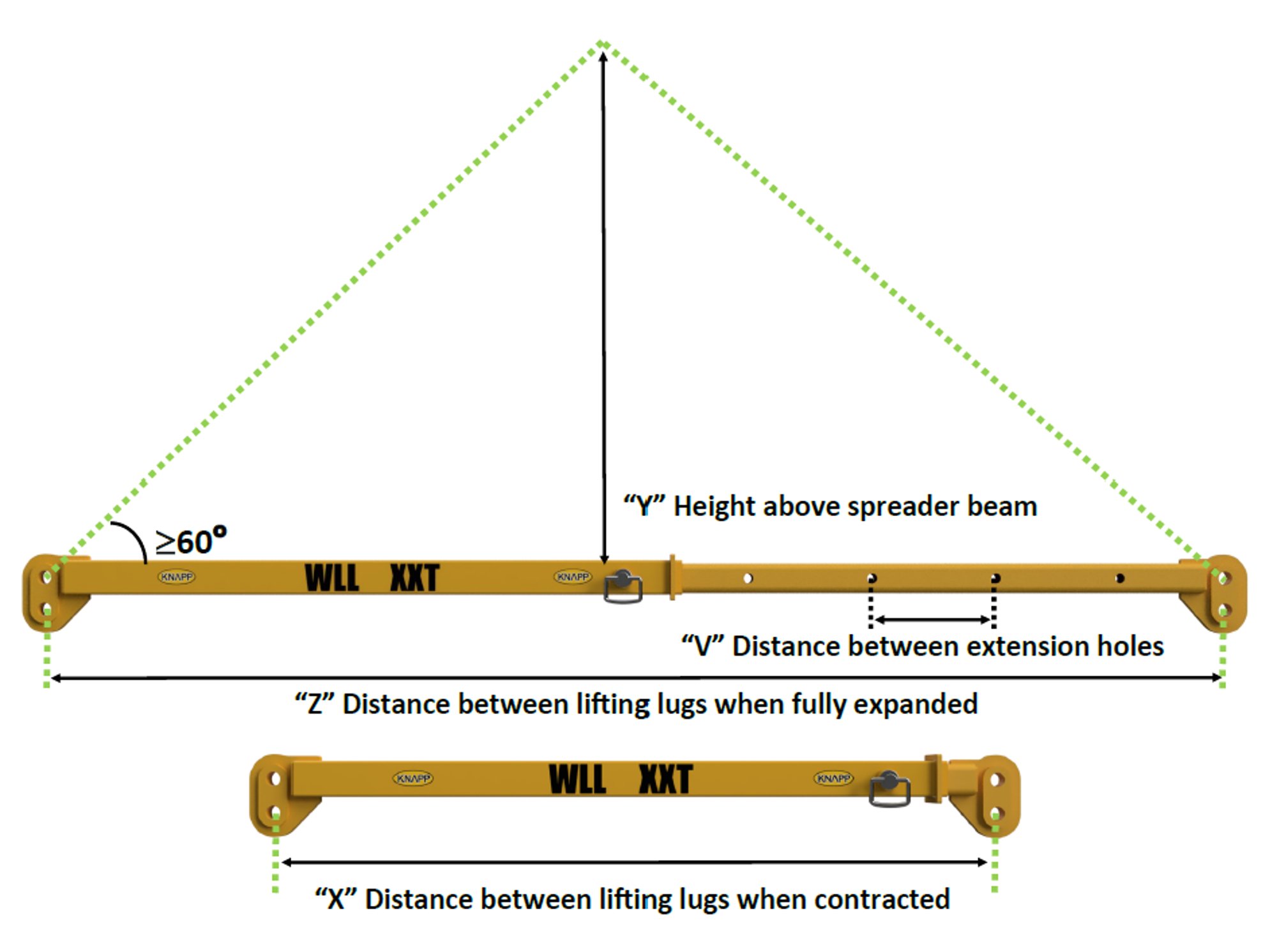

| "X" length when contracted | 1100 mm |
| "Z" length when extended | 1500 mm |
| No. expansion holes each inernal beam | 2 |
| "V" distance between expansion holes | 200 mm |
| "Y" height required above beam | 1.3 metres |
| Bow shackle size for lifting lug | 6.5T |
| Pins | S408 |
| Colour | Safety Yellow |
| Tare weight | 25 kgs |
| Lead Time | 1 in Stock |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
WLL (Weight Load Limit) Matrix
| SPAN (Maximum) | WLL |
| 1500 mm | 6T |
| 1300 mm | 6T |
| 1100 mm | 6T |
Bracket Dimensions
| "A" Distance from outside of lifting lug to outside of lifting lug | 1203 mm |
| "D" Distance between Pin Centres | 1110 mm |
| "E" Height of lifting lug | 156 mm |
| "G" Height and width of central section - largest section | 65 mm |
| Distance pin extends beyond the outside of central section | 25 mm |
