5-10T Central Lifting & Double Telescopic Adjustable Spreader Beam End Lifting Lugs -expands to 4000mm

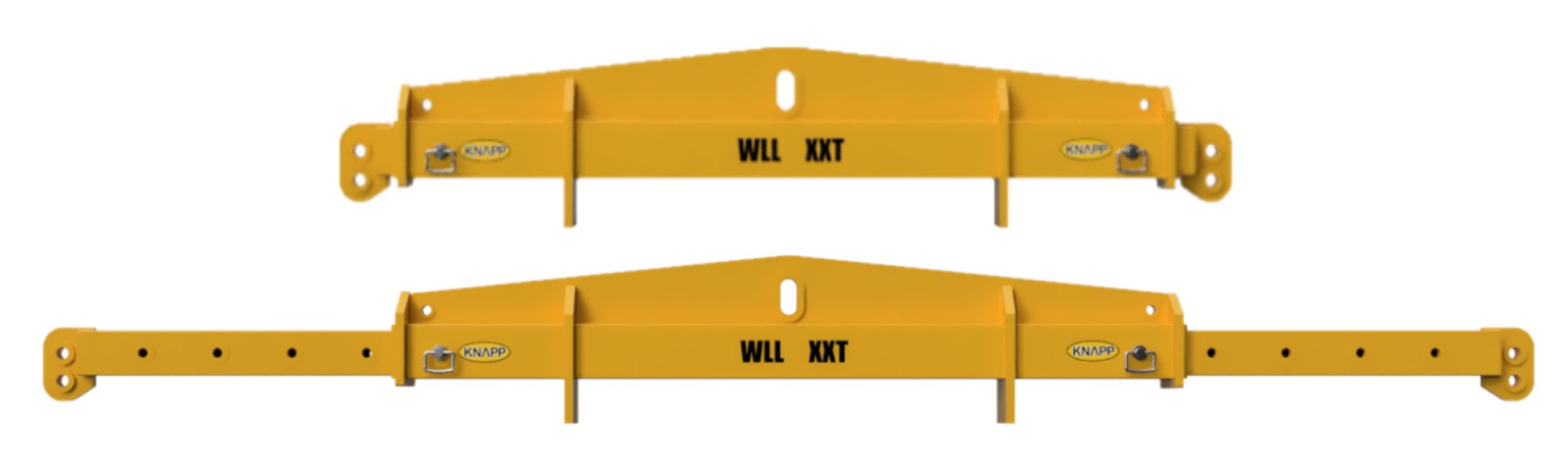

This telescopic adjustable spreader beam expands from 2300mm to 4000mm. It can be lifted from either a central lifting point or end lifting lugs. It is rated to lift 5T WLL (Weight Load Limit) when the spreader beam is expanded to 4000mm and is lifted from the central lifting point. It is rated to lift 10T when the spreader beam is expanded to 4000mm and is lifted from the end lifting lugs. contracted to 2300mm and can lift WLL 15T when the spreader beam is fully extended to 5100mm. Ideal for Hiabs which need to lift loads with limited head room lifting using the central lifting point. The spreader beam is 2487mm when contracted from outside of lifting lug to outside of lifting lug so within the 2500mm maximum with for truck decks.
| Product Code (SKU) | SB312CE-4000-5T |
| PRICE (excl GST) | $7,255.00 + GST |
| WLL (Weight Load Limit) | 5-10T |
| "X" length when contracted | 2370 mm |
| "Z" length when extended | 4000 mm |
| No. expansion holes each inernal beam | 4 |
| "V" distance between expansion holes | 203.75 mm |
| "Y" height required above beam | 198 mm |
| Bow shackle size for lifting lug | 9.5T |
| Pins | S432 |
| Colour | Safety Yellow |
| Tare weight | 307 kgs |
| Lead Time | 1 in Stock |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
WLL (Weight Load Limit) Matrix
| SPAN (Maximum) | WLL |
| 4000 mm | 10T End LiftingLugs |
| 4000 mm | 5T Central Lifting Point |
