4T Single Length

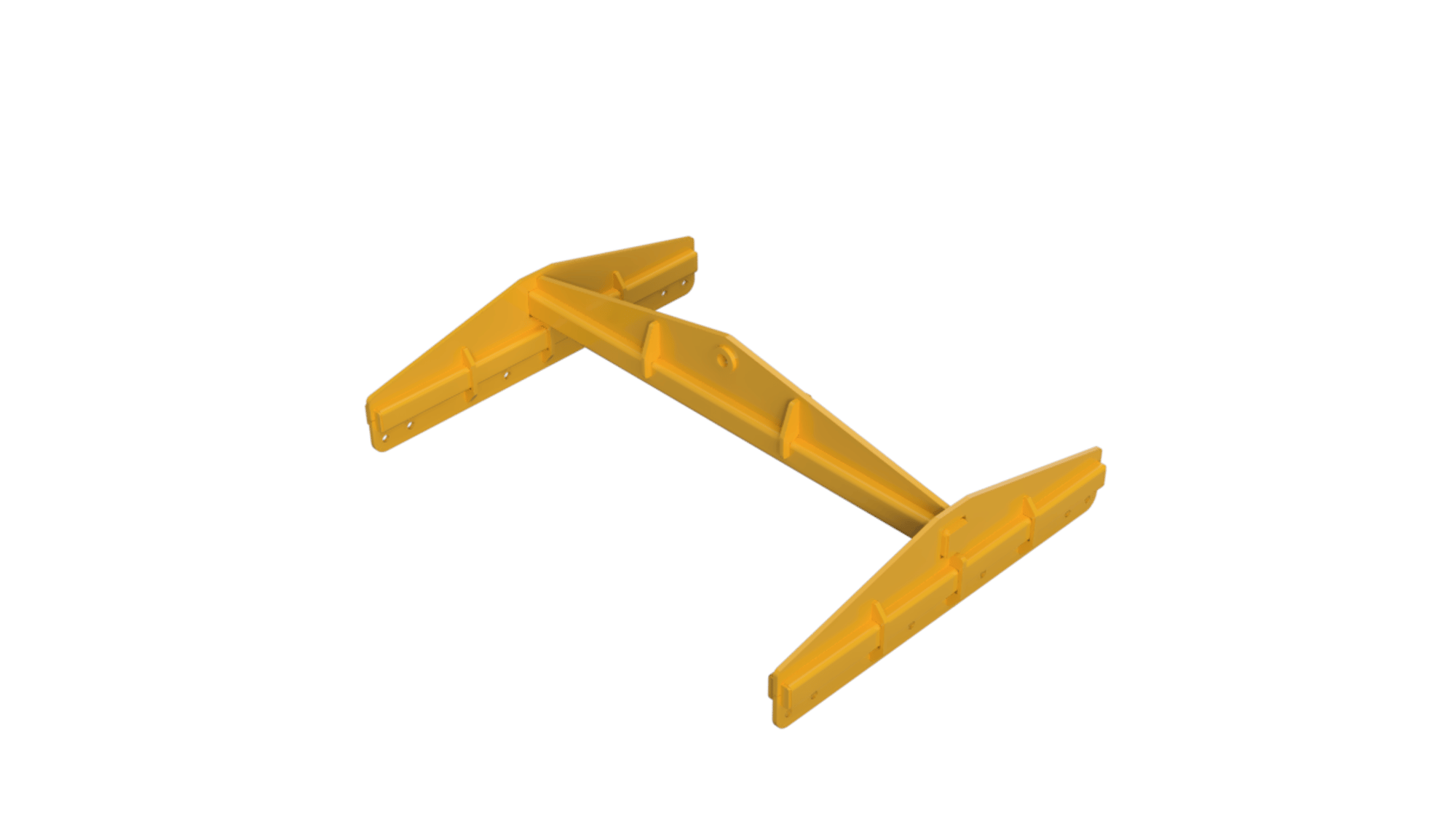

This "H" lifting beam is rated to lift 4T WLL (Weight Load Limit) with 4 lifting points spaced 1337mm and 1000mm apart under the lifting beam and a central hole to lift the beam on top of the beam. There are additional lifting holes on the legs at 850mm and 240mm spans. Ideal for lifting loads where 4-points of contact are required and there is limited space above the beam. View our complete range of H lifting beam with central lifting point to find the perfect solution for your lifting requirements.
| Product Code (SKU) | SBH-1337C-1000L-4T-R1 |
| RETAIL PRICE (excl GST) | $3,480.00 + GST |
| WLL (Weight Load Limit) | 4T |
| “X” Distance btw Lifting Lugs on Central Beam | 1337 mm |
| “Z” Distance btw Lifting Lugs on Legs | 1000 mm |
| “A” Distance between Top Lifting Hole and Hole in Lifting Lug under beam | 312 mm |
| Bow shackle size for Top Lifting Hole | 9.5T |
| Bow shackle size for Lifting Lug | 3.2T |
| Colour | Safety Yellow |
| Tare weight (kgs) | 91 kgs |
| Lead Time | 3 weeks |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
