20-30T Double Telescopic Adjustable Spreader Beam End Lifting Lugs -expands to 14000mm
This double telescopic adjustable spreader beam expands from 7500mm to 14000mm. It is rated to lift 30T WLL (Weight Load Limit) when the spreader beam is contracted to 7500mm and can lift 20T WLL when the spreader beam is fully extended to 14000mm.
| Product Code (SKU) | SB312-14000-20T-R1 |
| PRICE (excl GST) | $12,455.00 + GST |
| WLL (Weight Load Limit) | 20-30T |

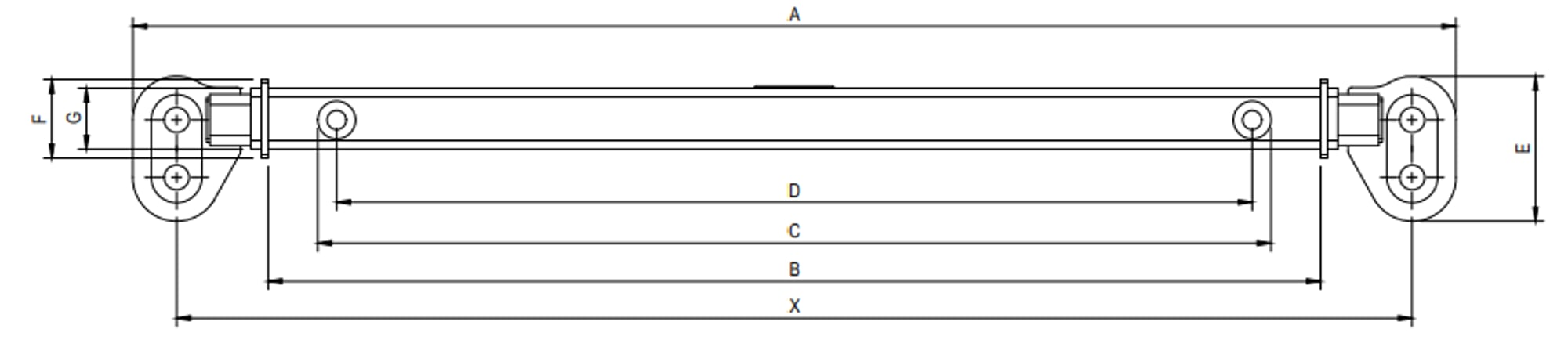

| "X" length when contracted | 8000 mm |
| "Z" length when extended | 14000 mm |
| No. expansion holes each inernal beam | 6 |
| "V" distance between expansion holes | 500 mm |
| "Y" height required above beam | 12.12 metres |
| Bow shackle size for lifting lug | 25T |

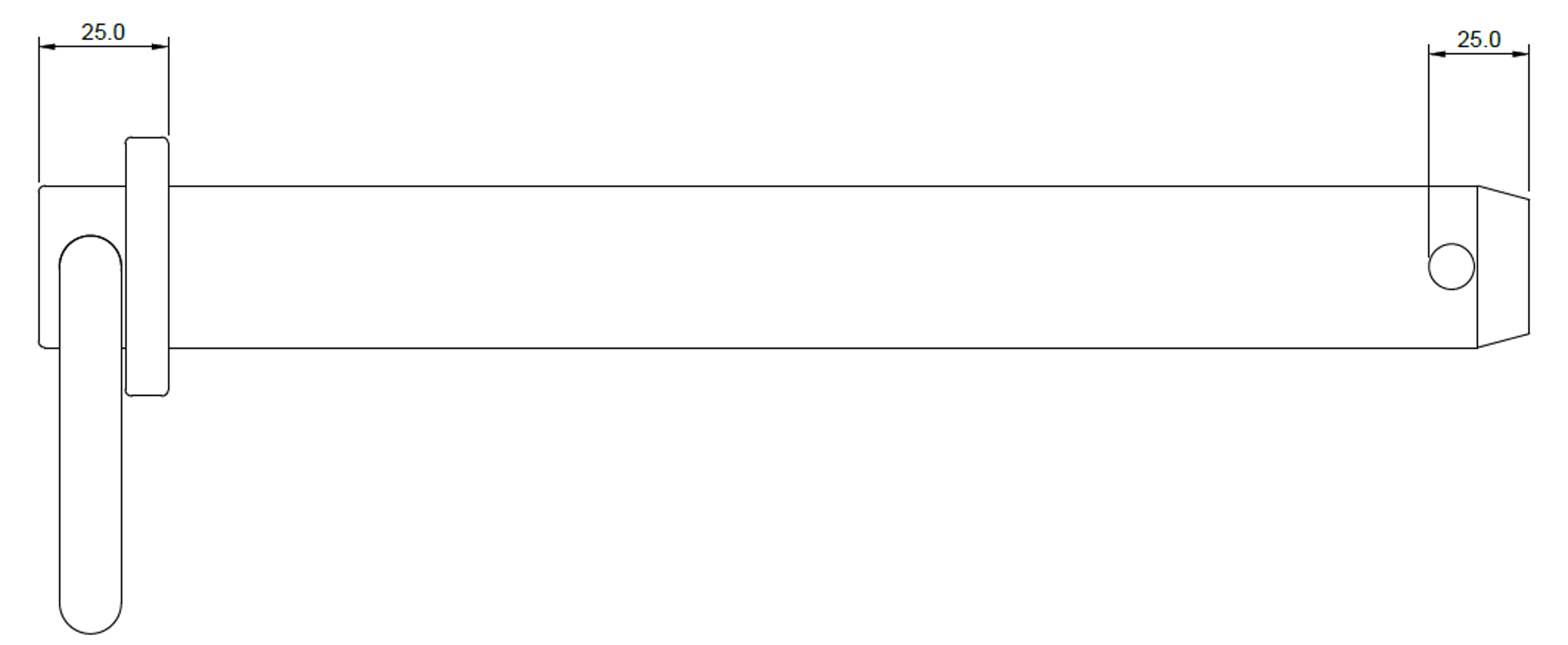

| Pins | S432-4340 |
| Colour | Safety Yellow |
| Tare weight | 785 kgs |
| Lead Time | 4 weeks |
KNAPP spreader beams are designed, manufactured and certified in accordance with Standard AS4991-2004 Lifting Devices. Please note that rigging and bow shackles are not included with the spreader beam but can be supplied in addition if required.
WLL (Weight Load Limit) Matrix
| SPAN (Maximum) | WLL |
| 14000 mm | 20T |
| 12000 mm | 22T |
| 11000 mm | 24T |
| 10000 mm | 26T |
| 9000 mm | 28T |
| 8000 mm | 30T |
